Case Packer

  • Automatic Case Erector with Bottom Sealer

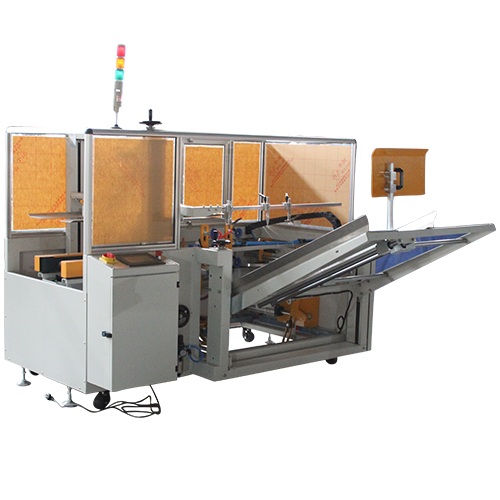

Automatic Case Erector with Bottom Sealer

Automatic Case Erector with Bottom Sealer

Performance Features

1. suitable for same specification carton in same time period, different specification carton need to adjust accordingly

2. Two side belt drive

3. Carton magazine adopt vertical type to fill cardboard at any time

4. It open cardboard, forming and carton bottom sealing

5. The structure is stronger, bottom sealing is more smooth and beautiful, high quality sucker.

Main Technical Parameters

Model KX-12
Carton Size Range L250-450*W200-400*H150-350mm
Applicable Tape 48/60/72mm
Voltage 220V 1Phrase 50HZ
Power 200W
Speed 8-10 cartons/minute
Table Height 625mm
Air Pressure 5kg.f/cm-100nl/min
Machine Size L2000*W1900*H1700mm
