Case Packer

  • Wrap Around Case Packer
Wrap Around Case Packer

Wrap Around Case Packer

Performance Features

1. With full automatic functions of bottle transferring and arranging, membrane packing, sealing and cutting, shrinking, cooling and shaping, etc.

2. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.

3. The quick seal cooling structure guarantees that the seal has a higher strength even if under high speed production condition.

4. Adopted with PLC automatic program circulation control with stable and reliable performance.

5. The original imported guide bar cylinder guarantees correct and durable operation.

6. The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss.

7. All the transfer system is controlled by frequency converter with stable and smooth transfer speed.

Technical Parameters

Model

GB-20

Speed 15-20cartons/minute
Carton Storage Volume

around 150pieces

Carton Size

L582-1450mm*W373-680mm

Power 380V 3Phrase 50HZ 8KW
Air Compression 6.0kg/cm2

Air Compression

1000L/min
Machine Size L6070*W2800*H2006mm
Machine Weight 2800KG

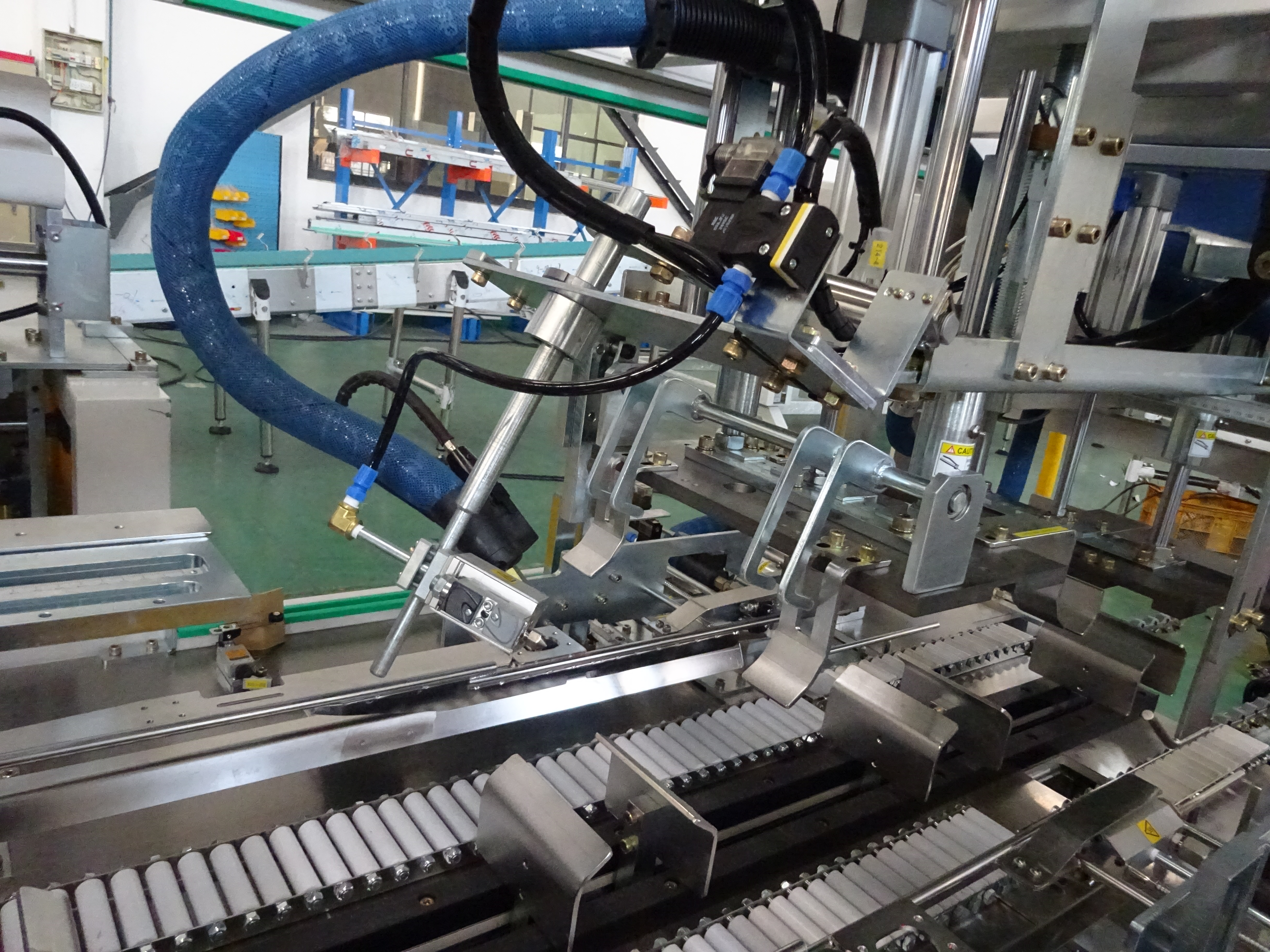

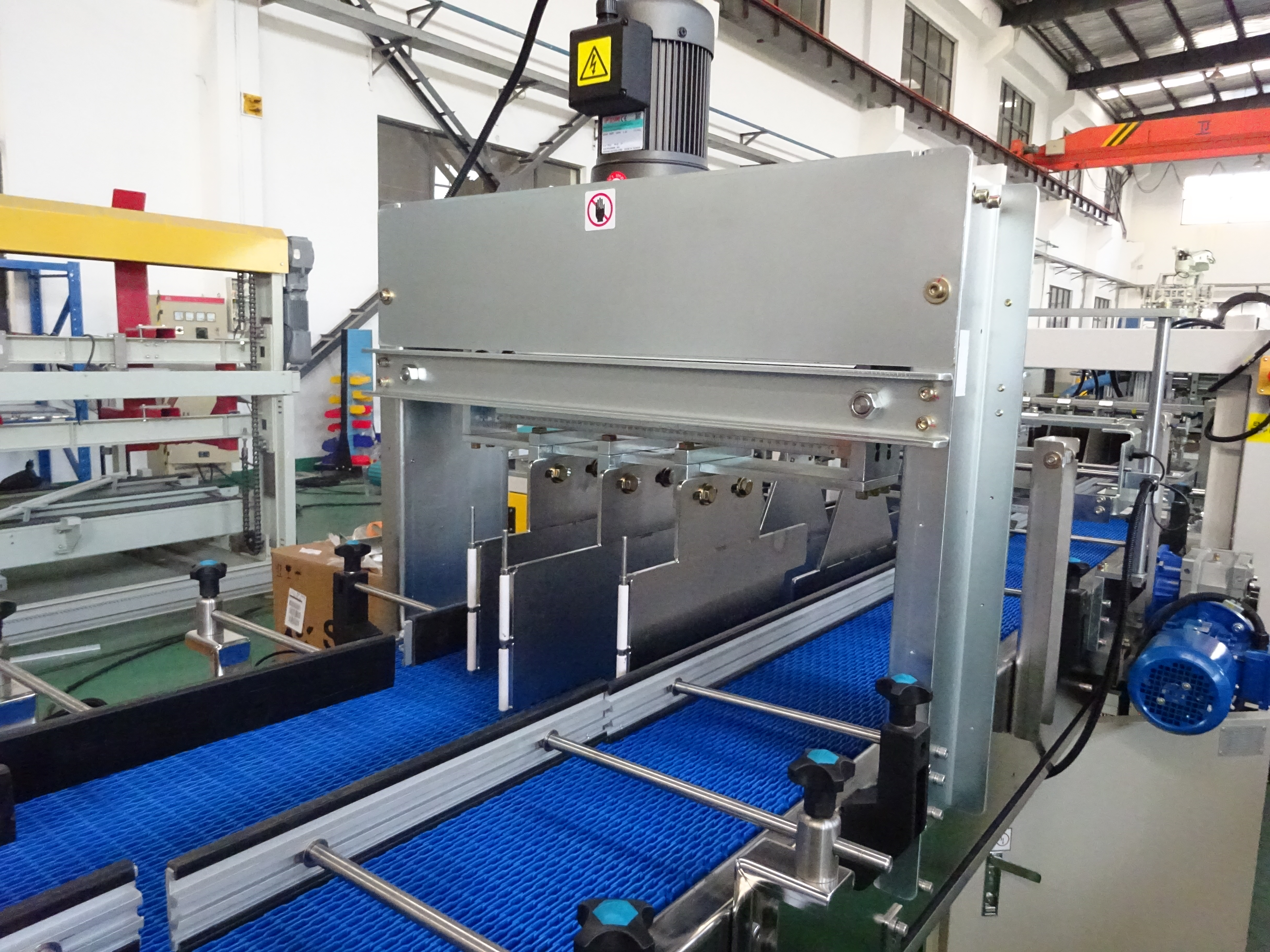

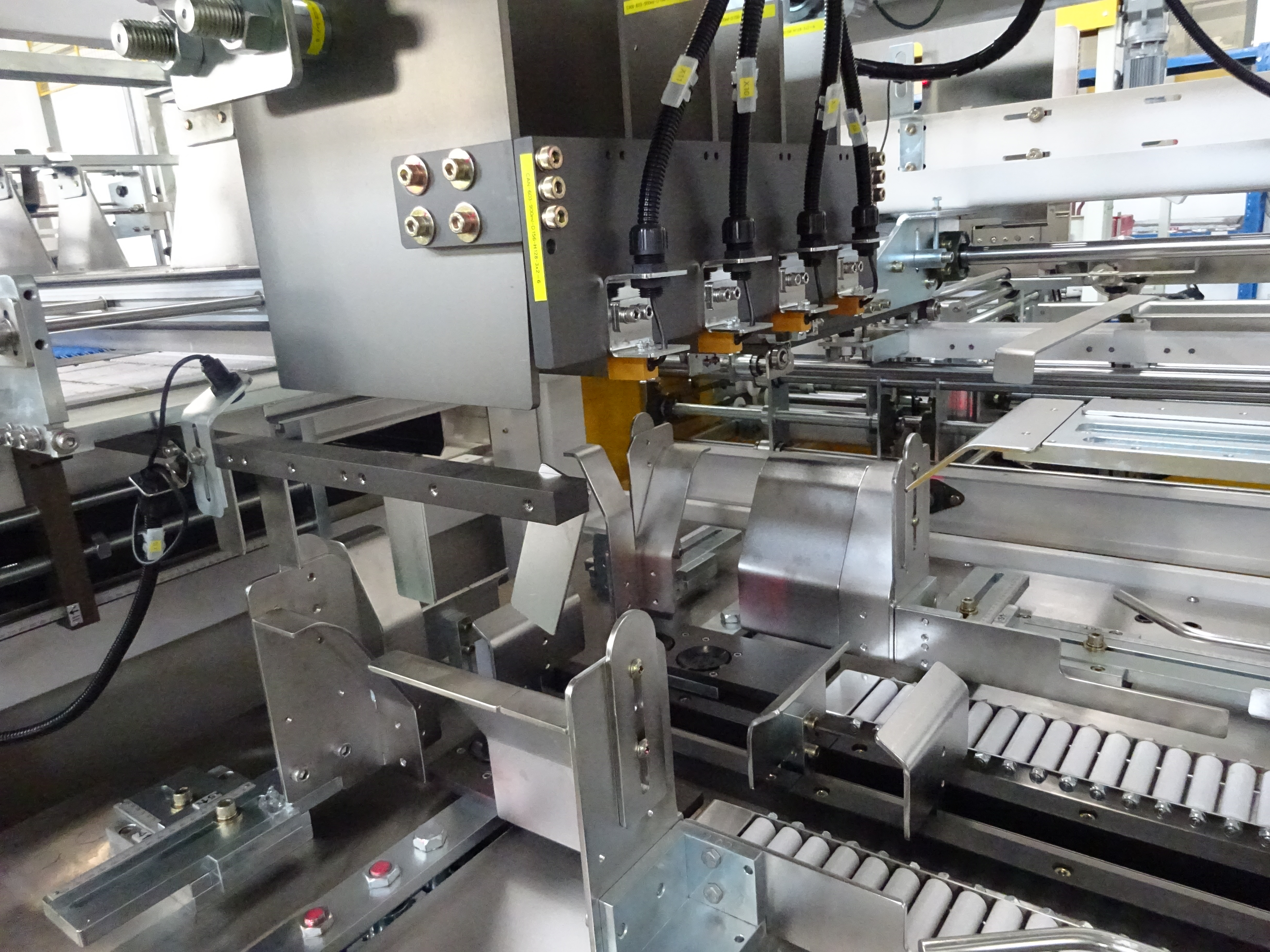

Machine Details
