Cartoning Machine

  • Automatic Tube Cartoning Machine

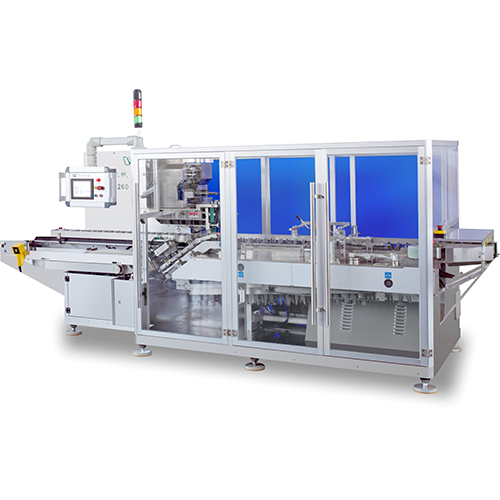

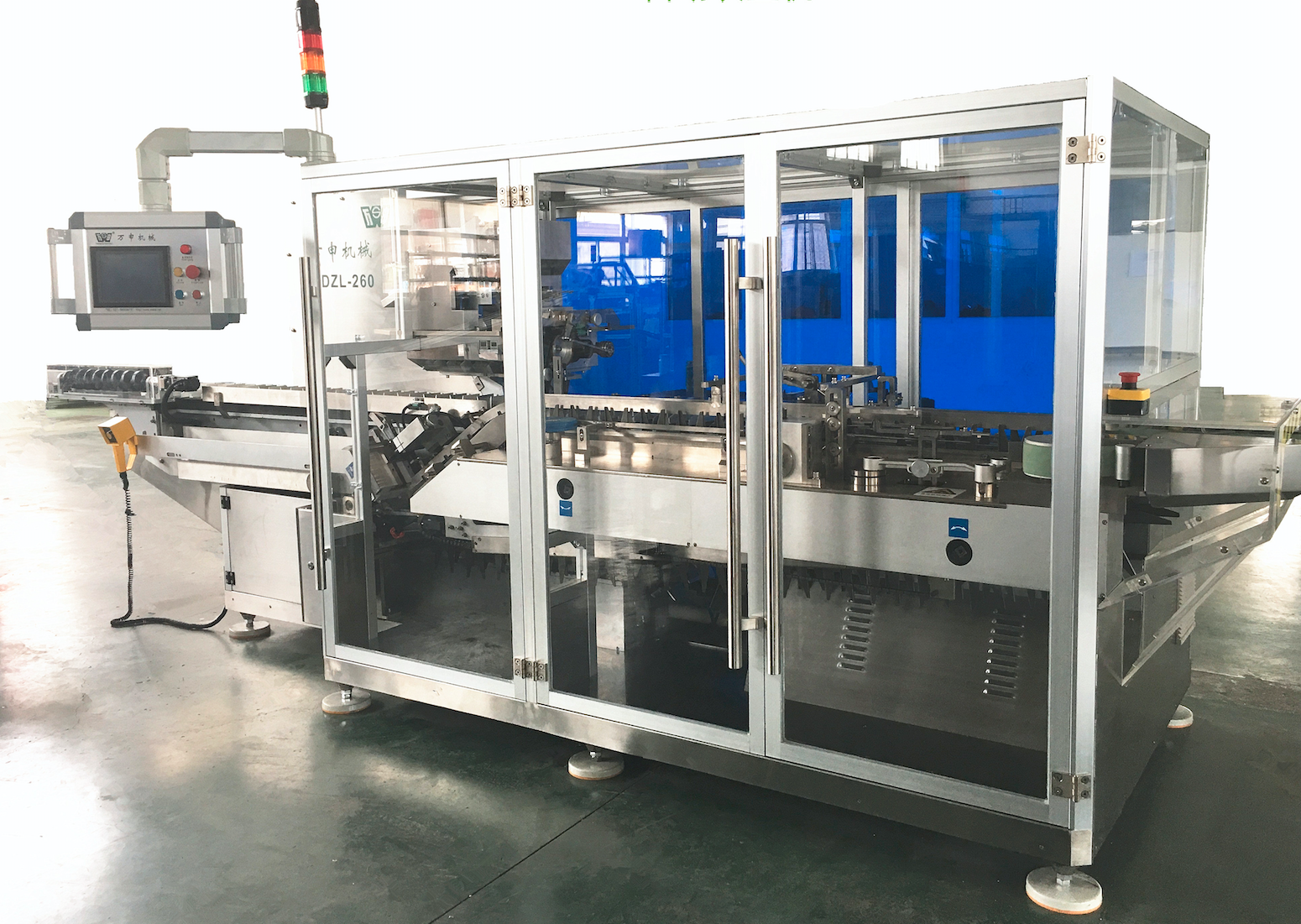

Automatic Tube Cartoning Machine

Automatic Tube Cartoning Machine

Performance Features

1. It is provided with automatic detection system, and the function of positioning, stopping and online sub-quality product elimination

2. It adopts human machine interface operating system, which show cartoning speed automatically, quantity, faulty causes and other performance parameters, also display operation and maintenance methods.

3. Multi box size can be used in one cartoning machine.

4. Three rows of batch numbers can be printed on medicine box or other kinds of box synchronously.

5. It can equip with hot melt glue machine.

Technical Parameters

Model HDZL-260G  Speed is less than 260 cartons/minute
Carton Box Specification L80-180*W20-90*H15-55mm also can customize according to product size
Manual Instructions Specification 110-180*90-250mm
Power Supply 380V 50HZ
Total Power 3.7KW
Cartoning Machine Dimension L4500*W1200*H1500mm
Compressed Air Pressure 0.6Mpa
Compressed Air Consumption 6m3/h
Weight 2200KG
Option Hot melt glue machine

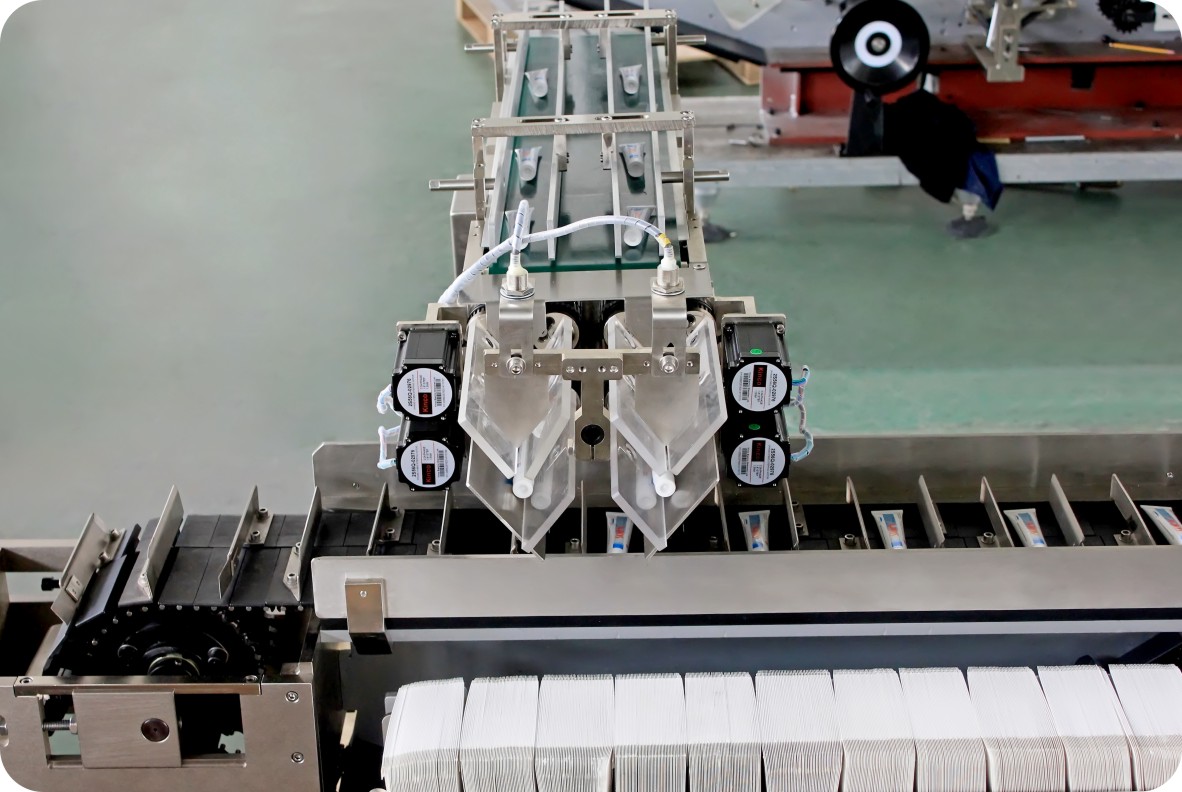

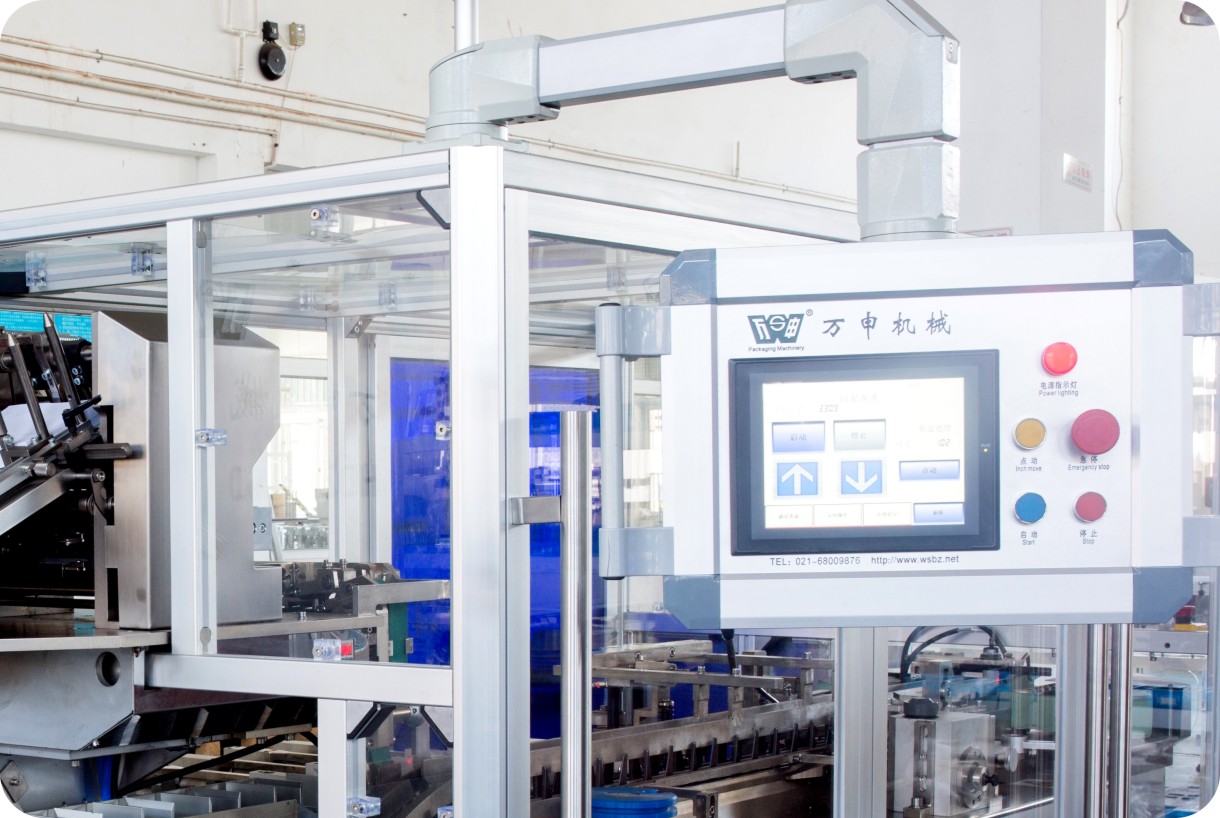

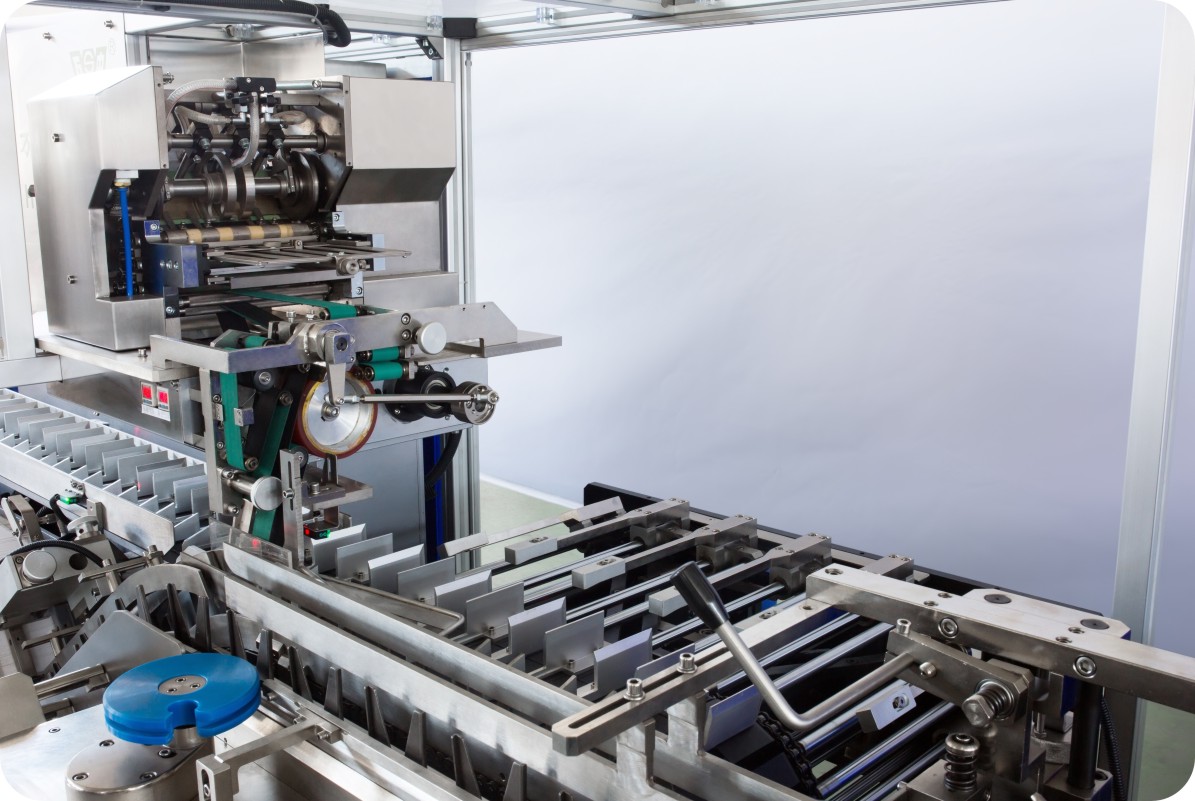

Machine Details
