Cartoning Machine

  • Pillow Bag Automatic Cartoning Machine

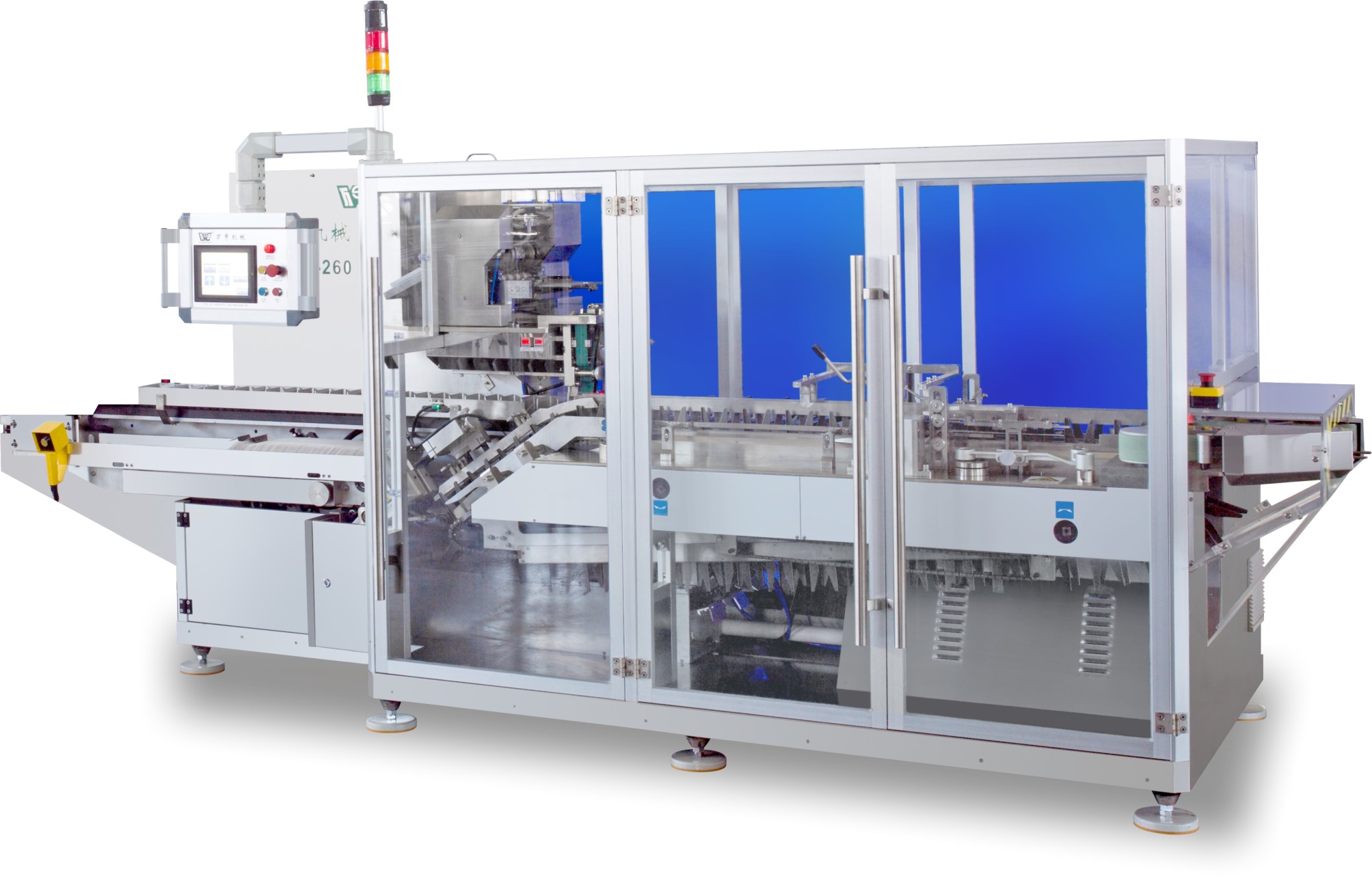

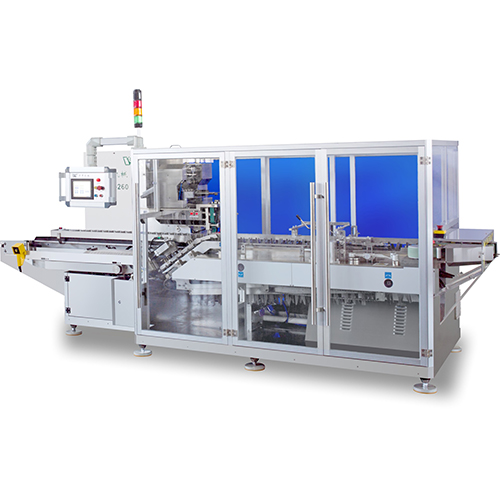

Pillow Bag Automatic Cartoning Machine

Pillow Bag Automatic Cartoning Machine

The equipment is mainly used for high speed automatic cartoning of pillow packaging product

Performance Features

1. It is provided with automatic detection system, and the function of positioning, stopping and online sub-quality product elimination

2. It adopts human machine interface operating system, which show cartoning speed automatically, quantity, faulty causes and other performance parameters, also display operation and maintenance methods.

3. Multi box size can be used in one cartoning machine.

4. Three rows of batch numbers can be printed on medicine box or other kinds of box synchronously.

5. It can equip with hot melt glue machine.

Technical Parameters

Model HDZL-260BZ   speed is less than 260 cartons per minute
Carton Box Specification L80-180*W20-90*H15-55mm also can customize according to product size
Manual Instructions Specification 110-180*90-250mm
Power Supply 380V 50HZ
Total Power 3.7KW
Cartoning Machine Dimension L6500*W1200*H1500mm
Compressed Air Pressure 0.6Mpa
Compressed Air Consumption 6m3/h
Weight 2200KG
Option Hot melt glue machine

Reminder: if carton specification exceeds our standard machine range, our company can customize according to your size. the package product type, quantity and the packaging materials will determine cartoning speed

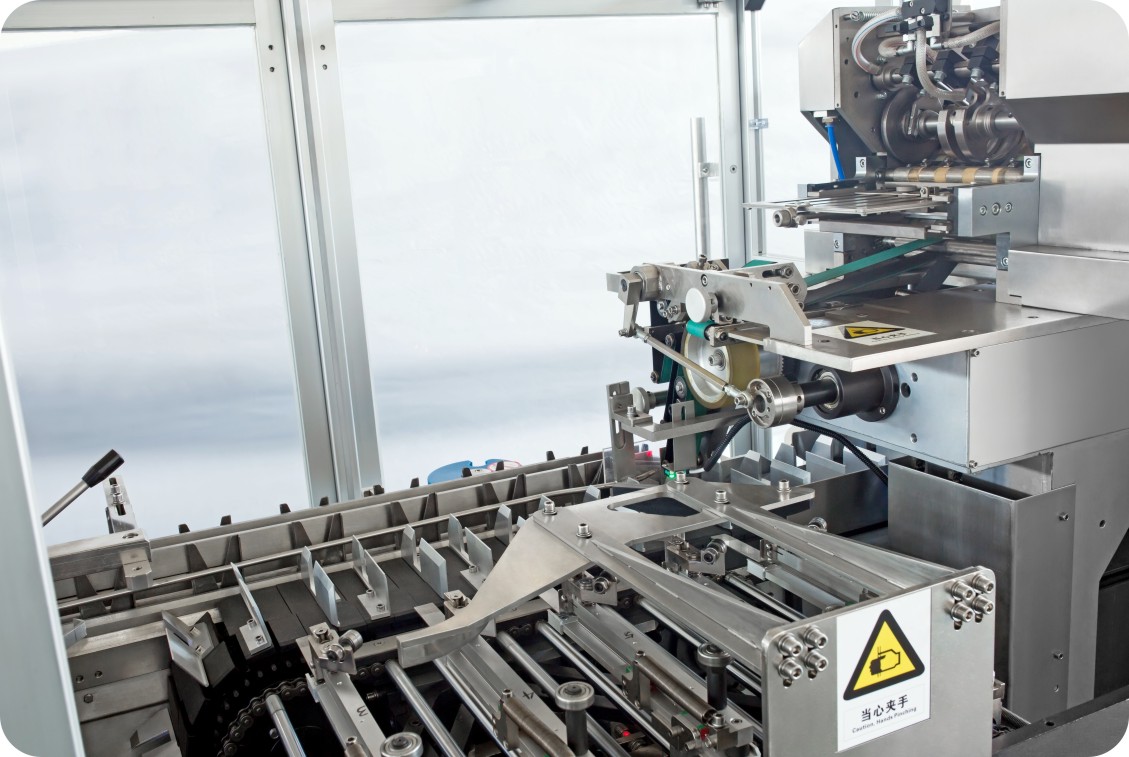

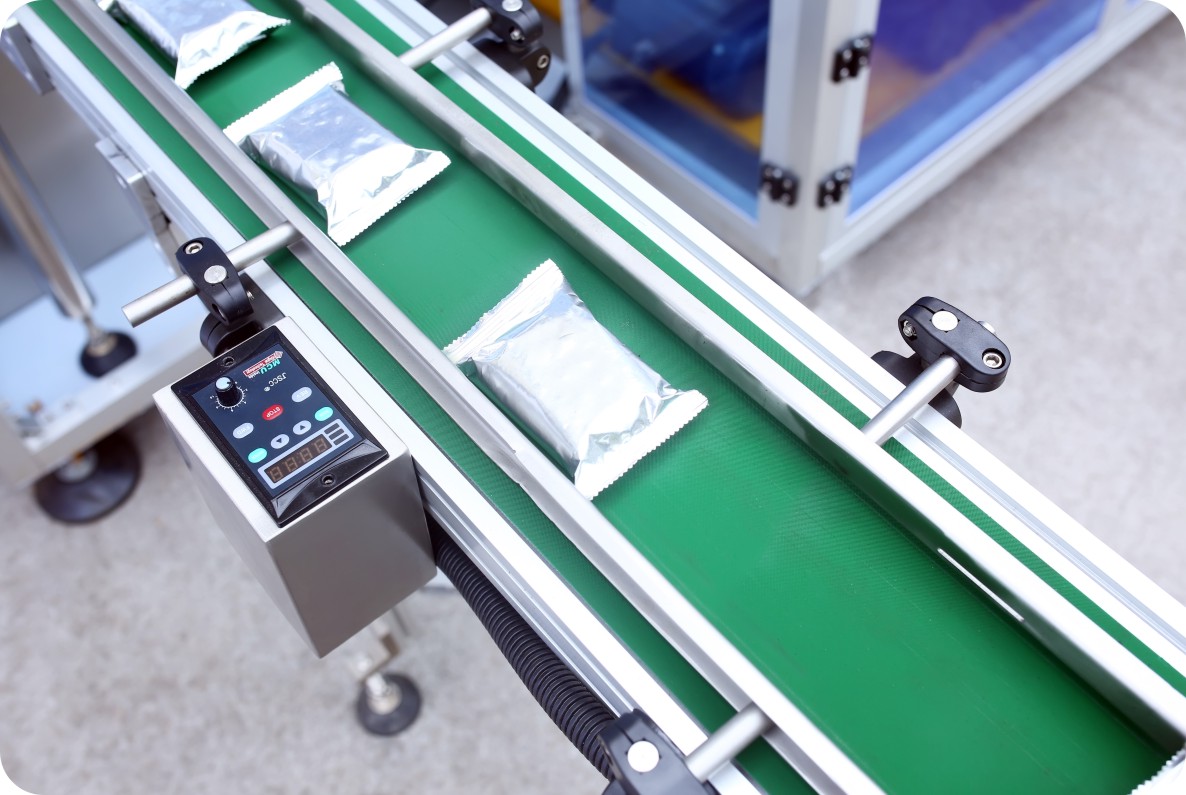

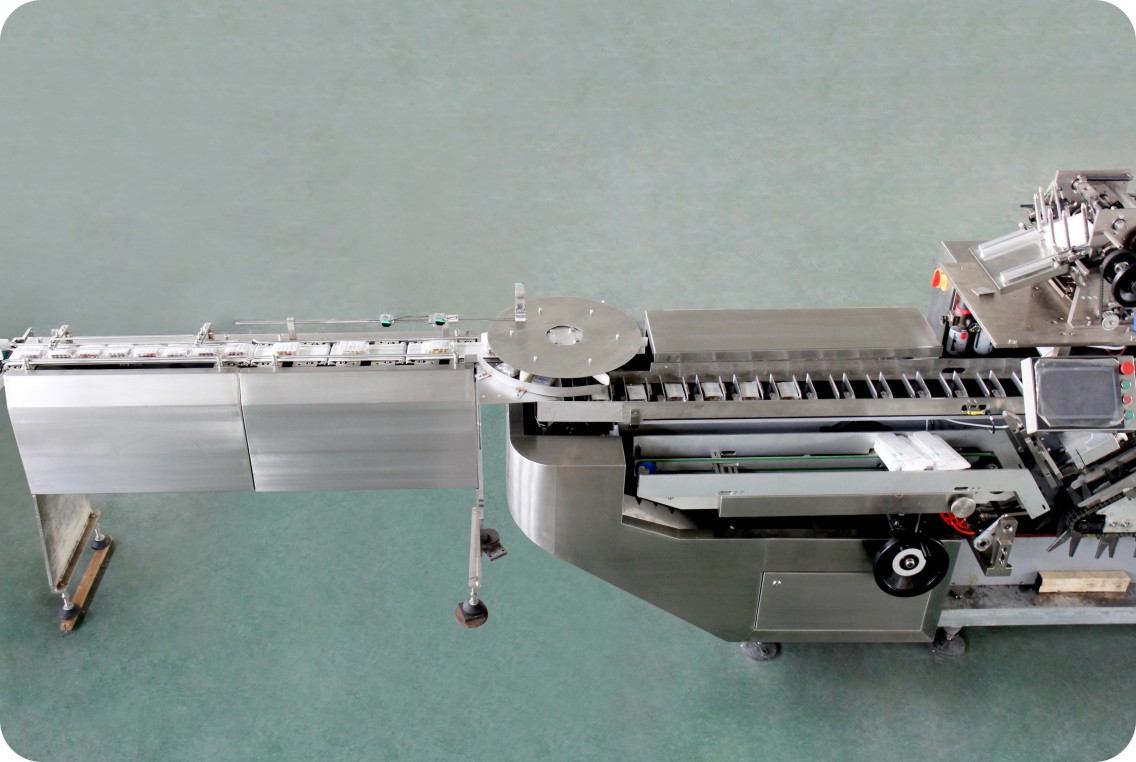

Machine Details
