Leaflet Folding Machine for Pharmaceutical Use

Leaflet Folding Machine for Pharmaceutical Use

This client is a pharmaceutical manufacturing company based in Ukraine. They operate a full-cycle pharmaceutical production facility and are currently in need to expand their packaging capabilities.

They are in need of a standalone (non-inline), manually operated leaflet folding machine that meets the following technical specifications:

Paper Size: Max – 350 mm (width) x 650 mm (length), Min – 70 mm (width) x 110 mm (length). The larger the size range, the better.

Paper Weight: 47 gsm to 130 gsm. Preference for lower weight capability.

Number of Folds: Minimum – 1, Maximum – 6 or more (the more, the better).

Folding Speed: At least 150 m/min or 19,000 leaflets/hour.

Minimum Folded Length: 18 mm (¾ inch).

Minimum Folded Length (Simple Fold): 50 mm.

Maximum Thickness of Folded Leaflet: 1.5 mm.

Fold Plates: Should be coated, not painted.

Folding Rollers: Preferably not fully rubber-coated.

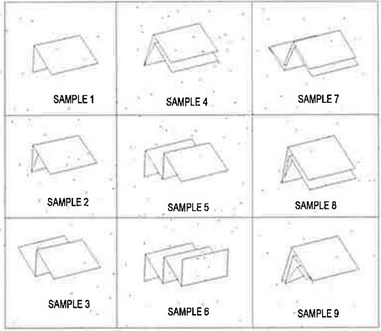

The specific 6 kinds folding ways required as below

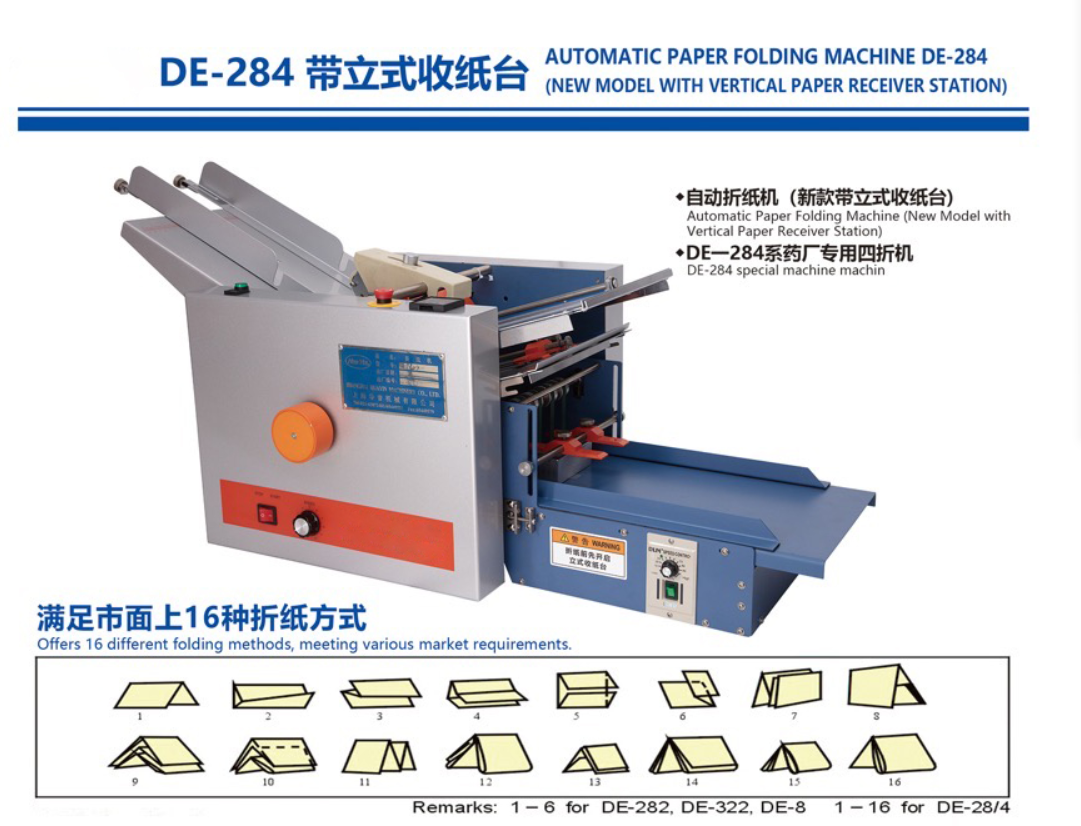

According to requirements, we offered our DE-284 automatic paper folding machine for their application, and below basic machine information for reference
