Cartoning Machine

  • Automatic Cartoner Machine for Liquid Injection

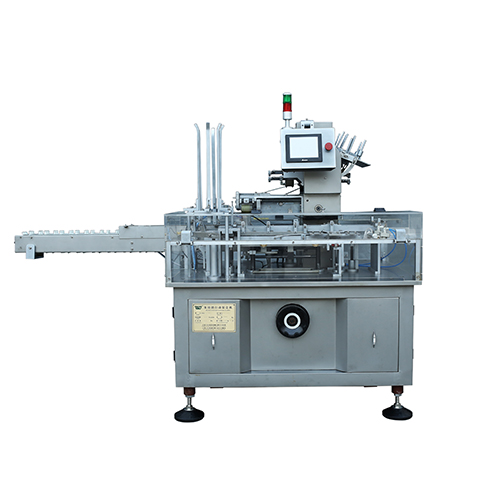

Automatic Cartoner Machine for Liquid Injection

Automatic Cartoner Machine for Liquid Injection

Performance Features

1. It adopts PLC, variable frequency automatic control system

2. It adopts human machine interface operating system, which show cartoning speed automatically, quantity, faulty causes and other performance parameters, also display operation and maintenance methods.

3. Multi box size can be used in one cartoning machine.

4. Manual and automatic operation switching functions.

5. It can equip with hot melt glue machine.

6. It provided with twice cartoning to avoid breaking injection products

Technical Parameters

Model HDZ-150K
Cartoning Speed 80-150cartons/minute
Carton Box Specification L110-160*W70-90*H12-35m
Manual Instructions Specification 110-180*90-250mm
Power Supply 380V 50HZ
Total Power 1.5KW
Cartoning Machine Dimension L3750*W1120*H1650mm
Compressed Air Pressure 0.6Mpa
Compressed Air Consumption 30-90L/min
Weight 1250kg
Option Hot melt glue machine

Reminder: if carton specification exceeds our standard machine range, our company can customize according to your size. the package product type, quantity and the packaging materials will determine cartoning speed

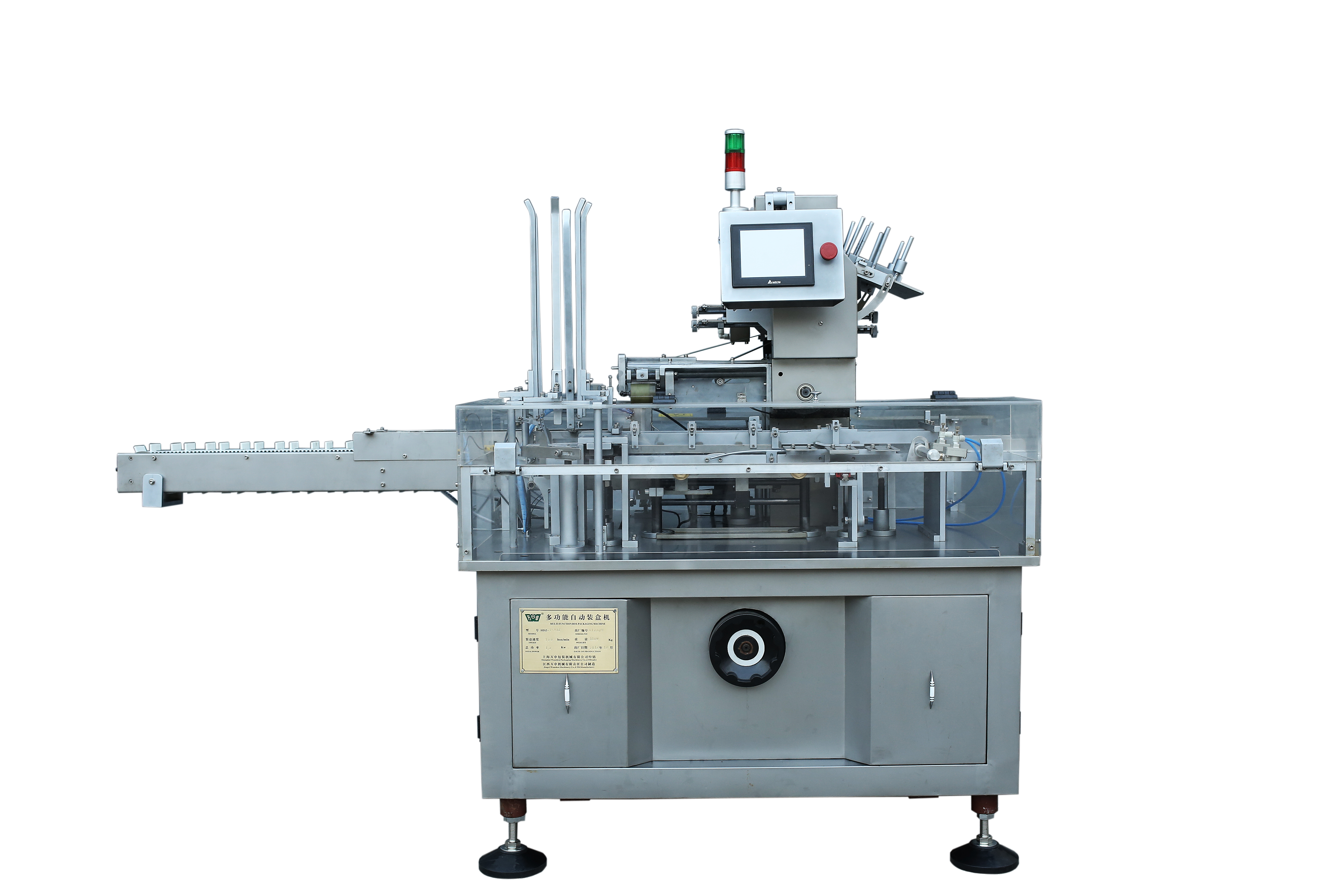

Machine Details
