Cartoning Machine

  • Automatic Food Box Cartoning Machine

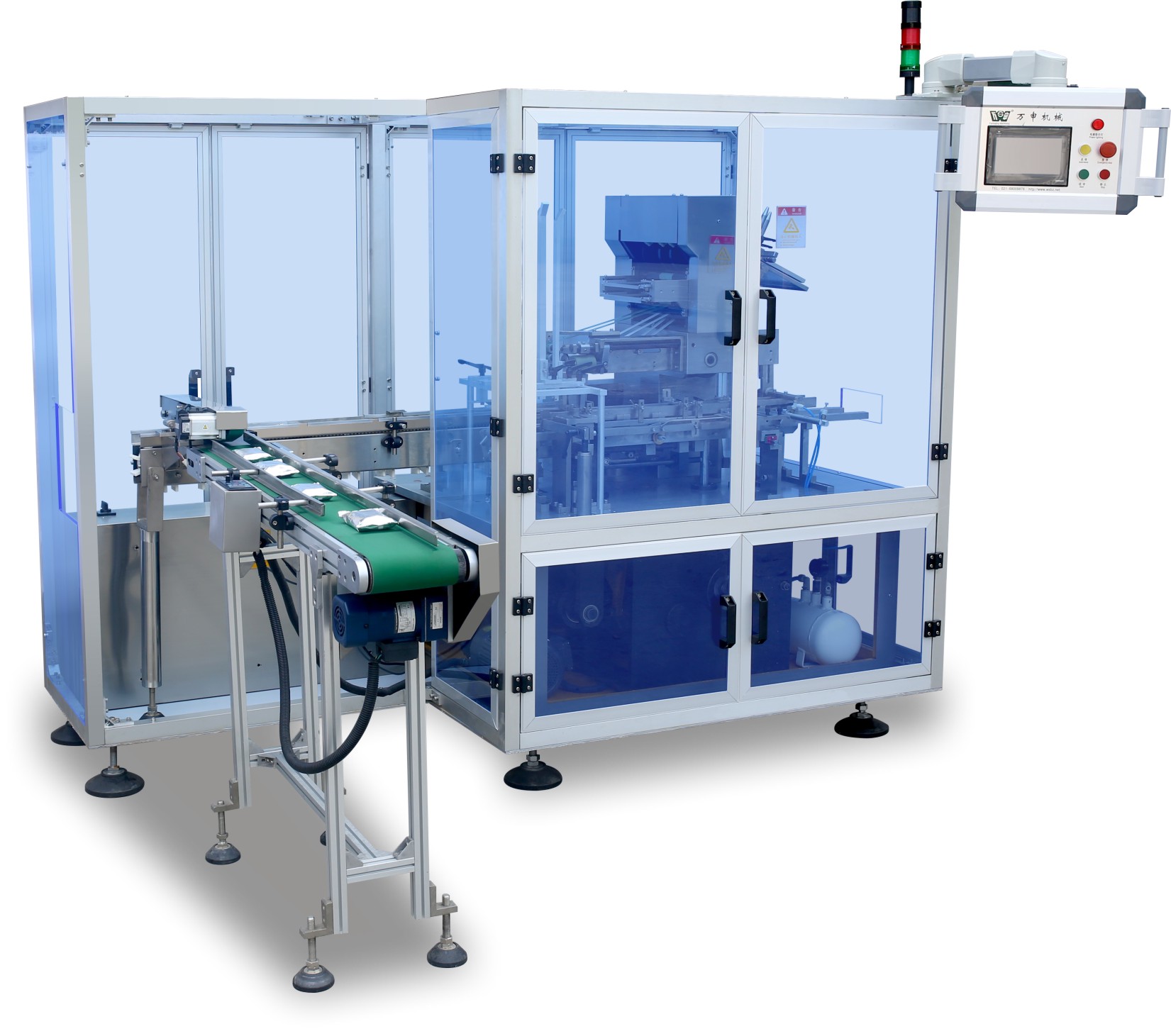

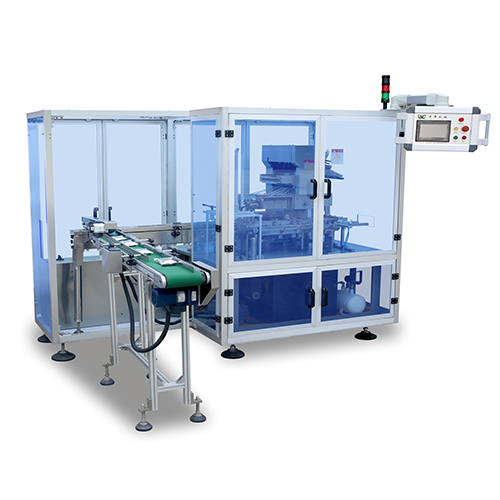

Automatic Food Box Cartoning Machine

Automatic Food Box Cartoning Machine

Performance Features

1. It adopts PLC, variable frequency automatic control system

2. It adopts human machine interface operating system, which show cartoning speed automatically, quantity, faulty causes and other performance parameters, also display operation and maintenance methods.

3. Multi box size can be used in one cartoning machine.

4. Manual and automatic operation switching functions.

5. It can equip with hot melt glue machine.

6. Manual feeding or connect with pillow packaging machine, we use cylinder to control synchronous belt, then pushing product into carton

Technical Parameters

Model HDZ-100BZ
Cartoning Speed 60-100cartons/minute
Carton Box Specification L65-150*W45-90*H12-55m
Manual Instructions Specification 110-180*90-250mm
Power Supply 380V 50HZ
Total Power 1.1KW
Cartoning Machine Dimension L1150*W1120*H1550mm
Compressed Air Pressure 0.6Mpa
Compressed Air Consumption 30-90L/min
Weight 1000kg
Option Hot melt glue machine

Reminder: if carton specification exceeds our standard machine range, our company can customize according to your size. the package product type, quantity and the packaging materials will determine cartoning speed

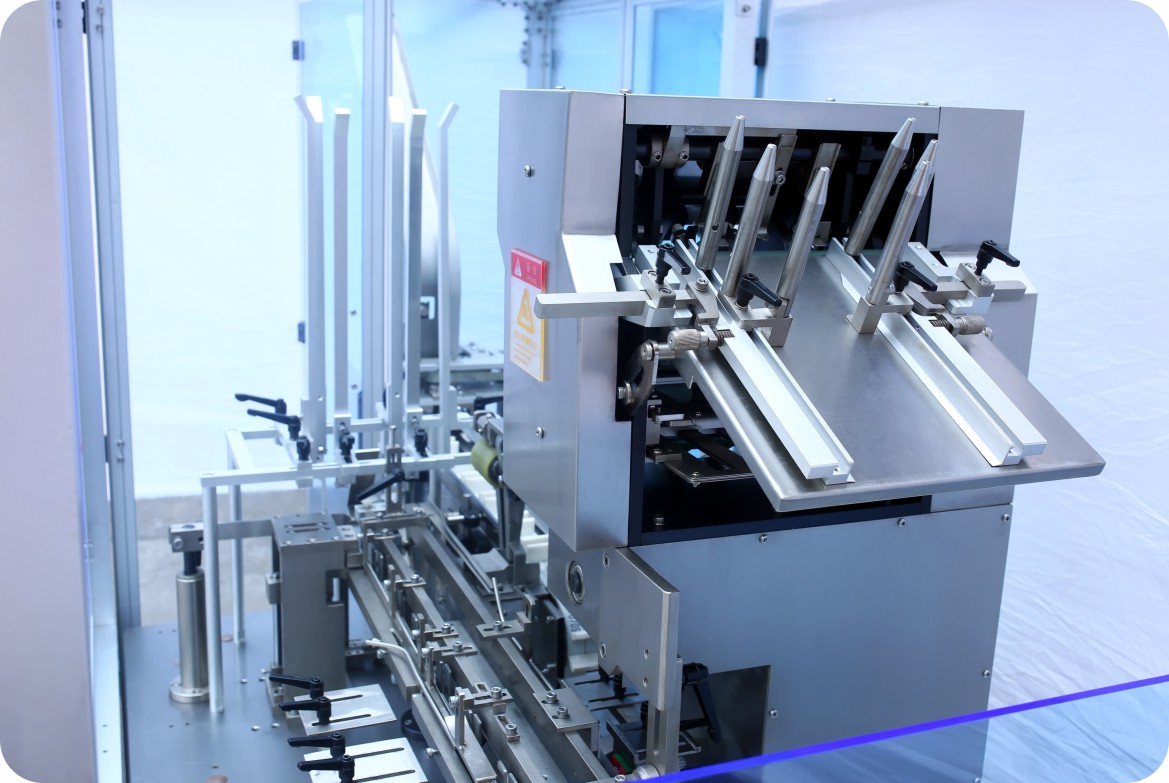

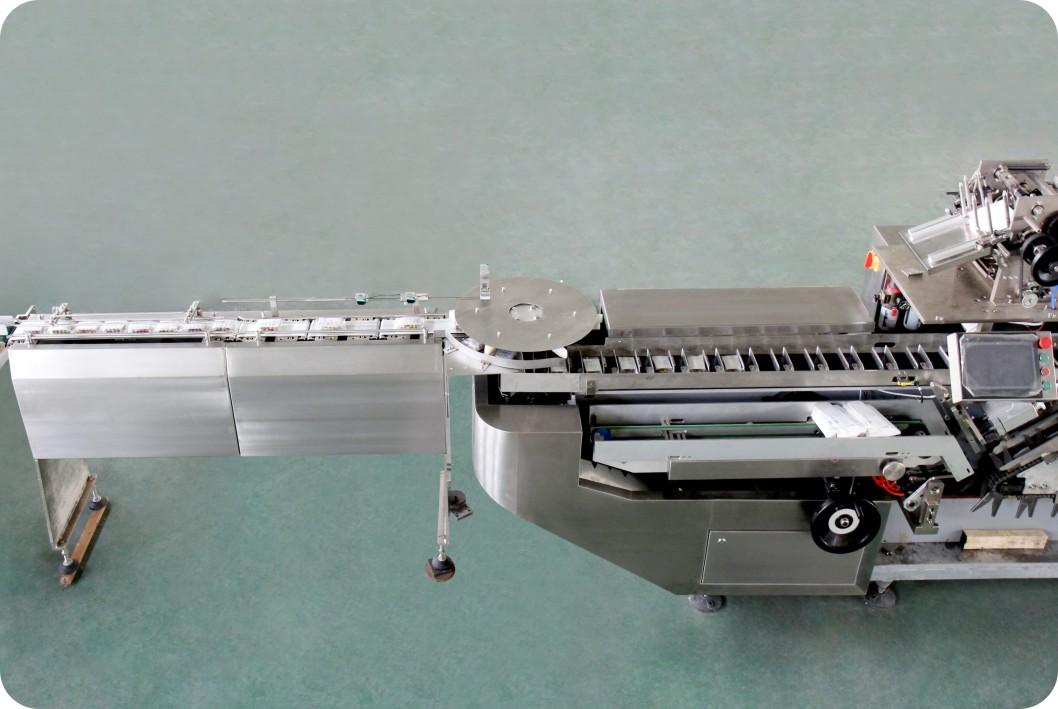

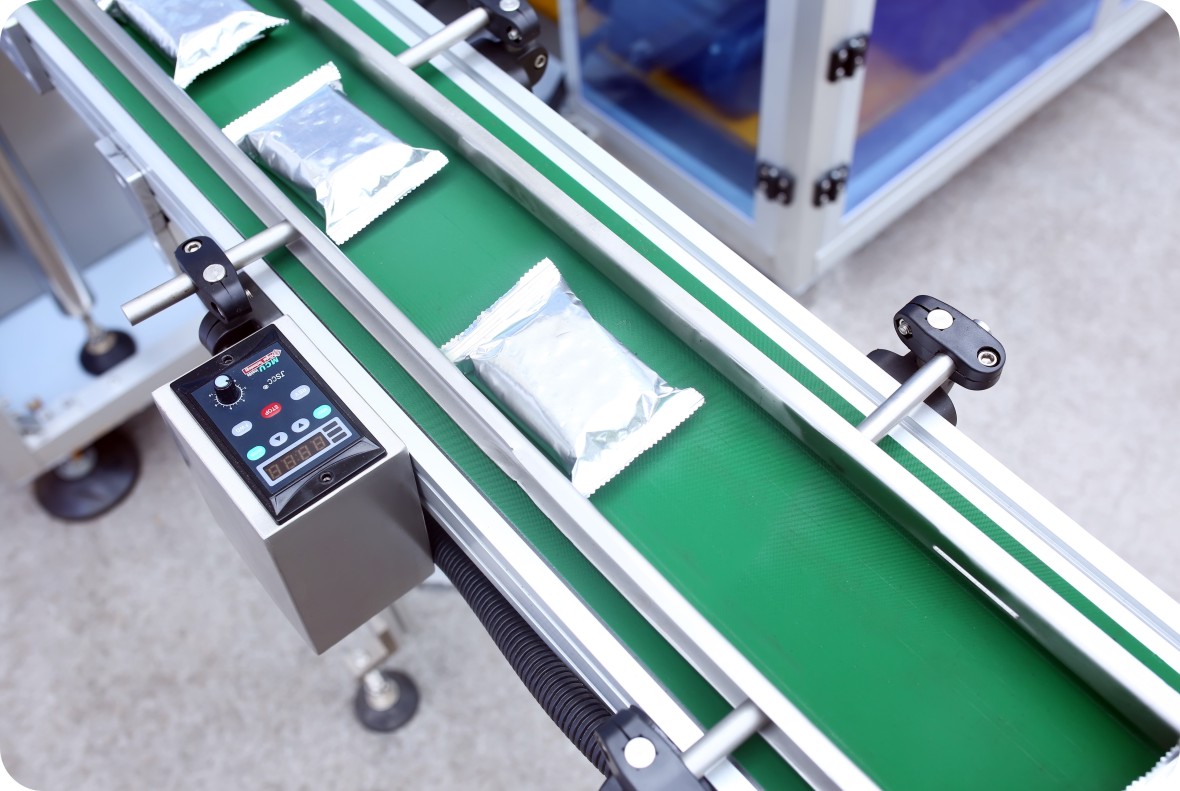

Machine Details
