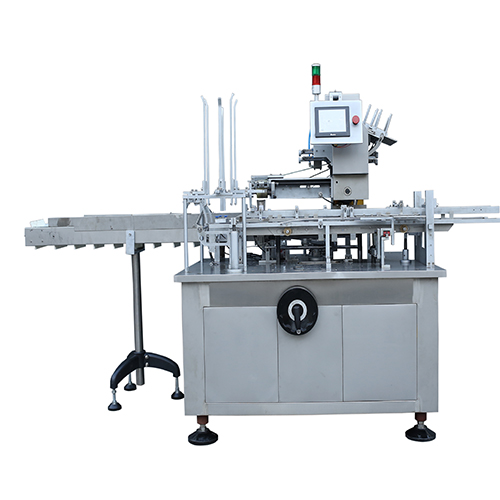

Automatic Soap Cartoning Machine

Performance Features

1. It adopts PLC, automatic control system, variable frequency inverter speed regulation;

2. CAM drive system, CAM using nodular cast iron after blackening, nitriding, CNC machining center manufacturing, stable operation, reliable performance;

3. It adopts human machine interface operating system, which show cartoning speed automatically, quantity, faulty causes and other performance parameters, also display operation and maintenance methods;

4. Multi specification adjustable, in a certain range can achieve multiple specification of product packaging;

5. Manual and automatic operation switching functions;

6. It can equip with hot melt glue machine;

7. It provided with twice cartoning to avoid breaking injection products;

8. With material low stop function;

9. It has warning function of stop when box is missing.


Technical Parameters

Model HDZ-150K
Cartoning Speed 80-150cartons/minute
Carton Box Specification L60-120*W30-90*H12-55m
Manual Instructions Specification 110-180*90-250mm
Power Supply 380V 50HZ
Total Power 1.5KW
Cartoning Machine Dimension L1700*W1120*H1650mm
Compressed Air Pressure 0.6Mpa
Compressed Air Consumption 30-90L/min
Weight 1250kg
Option Hot melt glue machine

Reminder: if carton specification exceeds our standard machine range, our company can customize according to your size. the package product type, quantity and the packaging materials will determine cartoning speed

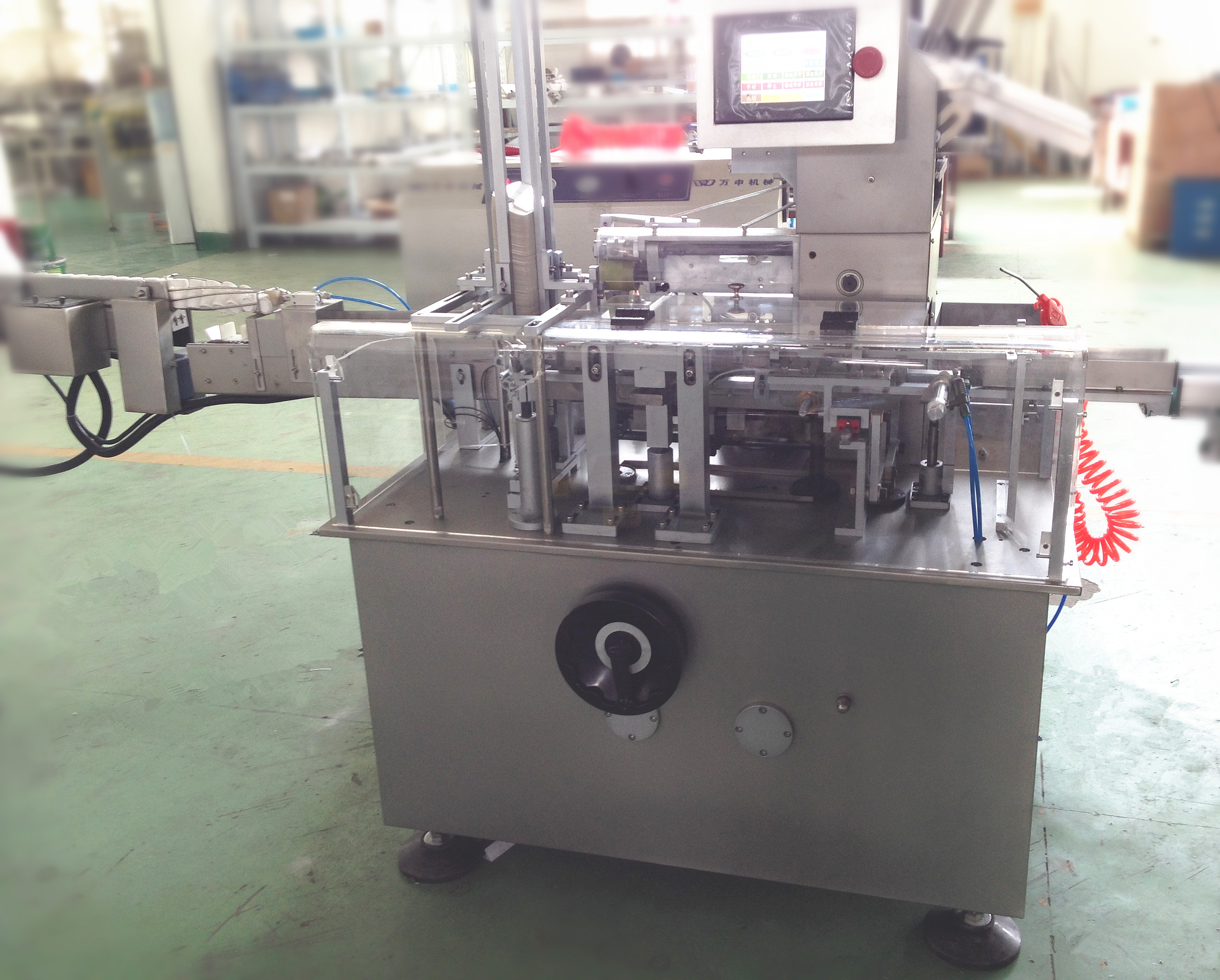

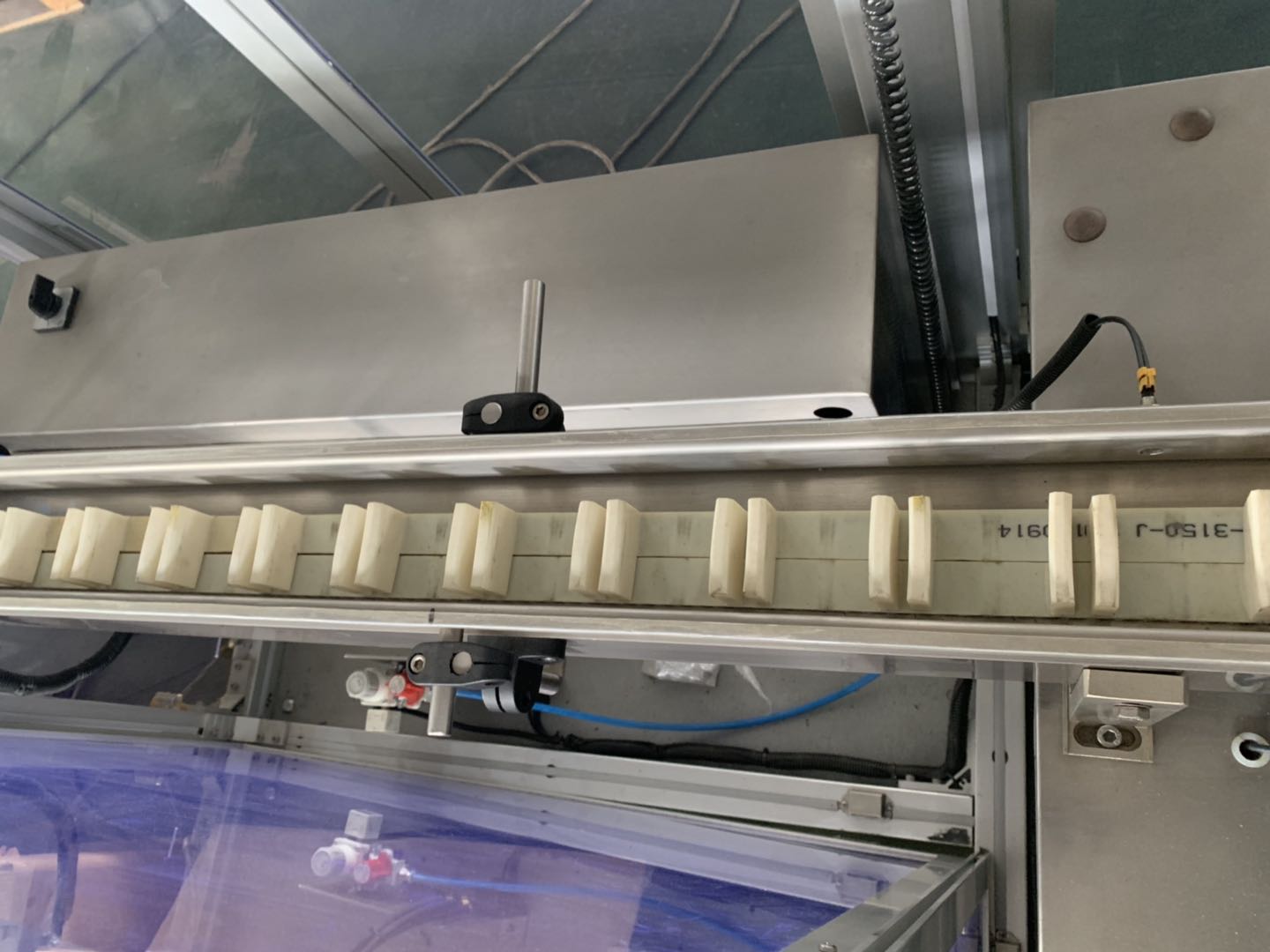

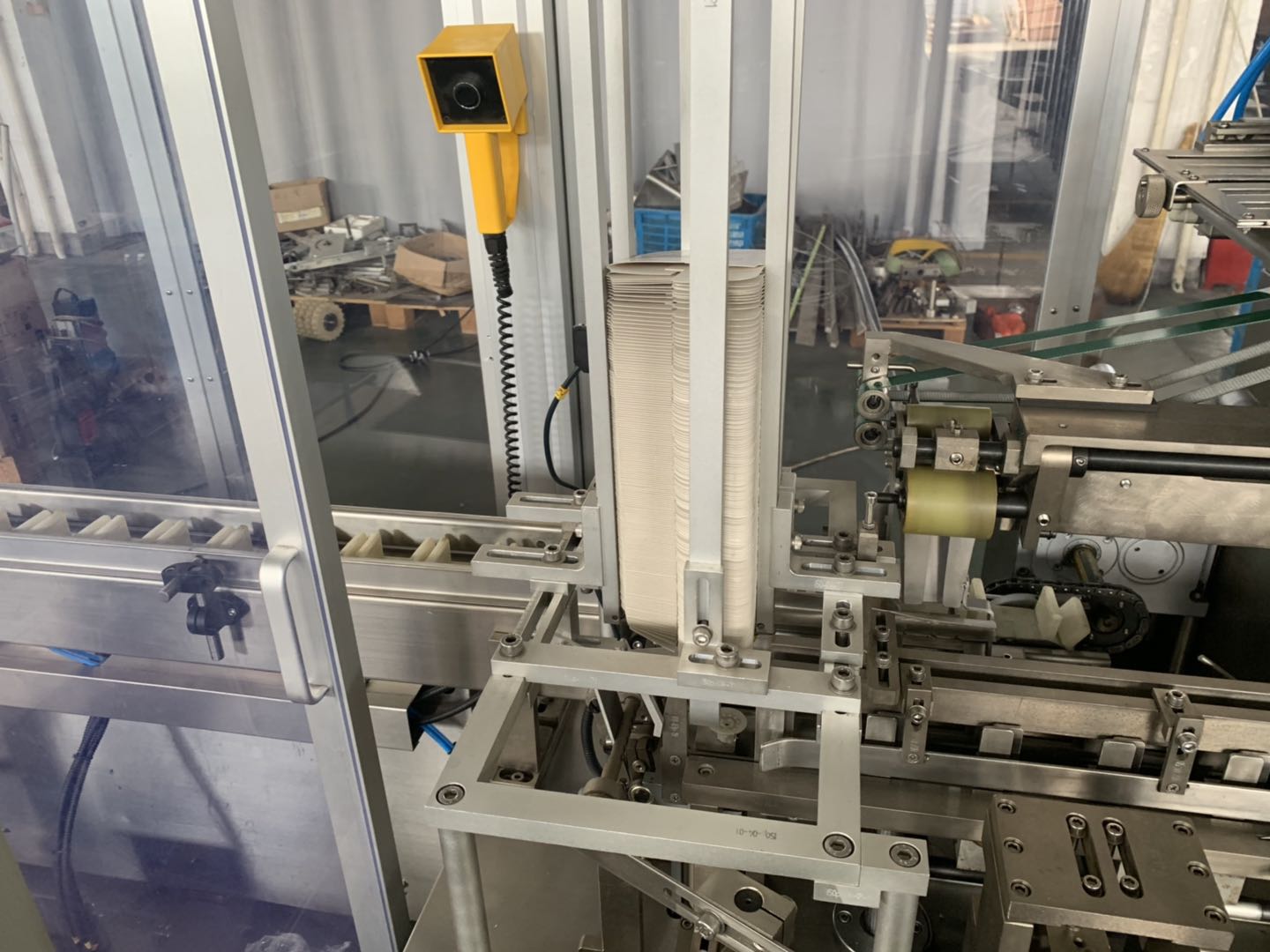

Machine Details

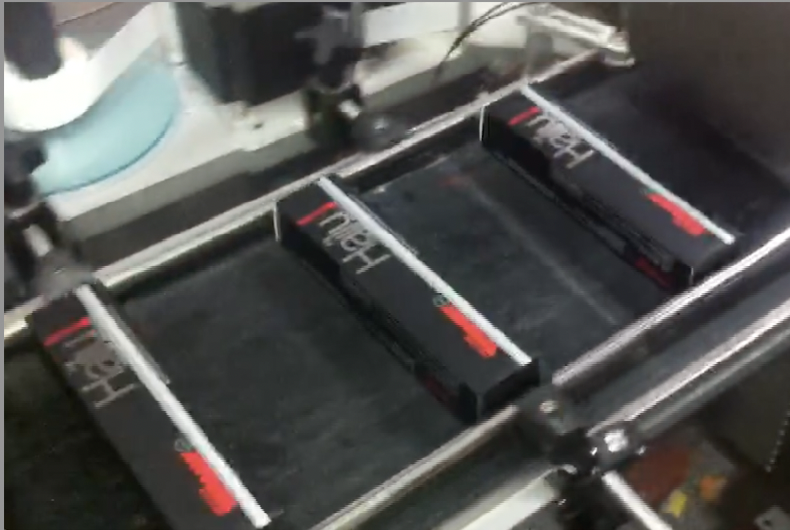

Packing samples for reference:


Machine video in YouTube for reference:

Youtube link: https://www.youtube.com/watch?v=20sAeEj-YA8
