Cartoning Machine

  • Automatic Toothpaste Tube Cartoning Machine

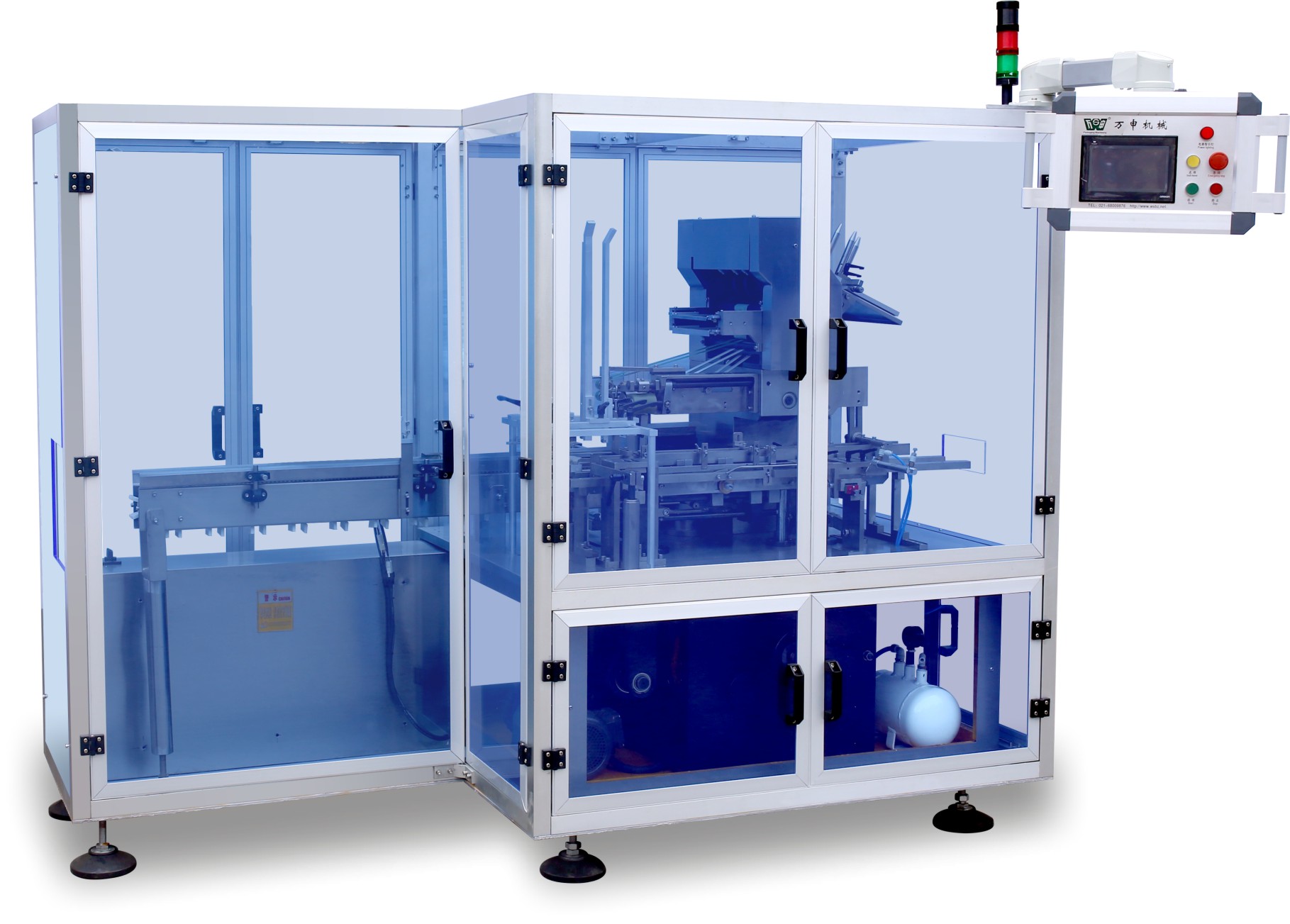

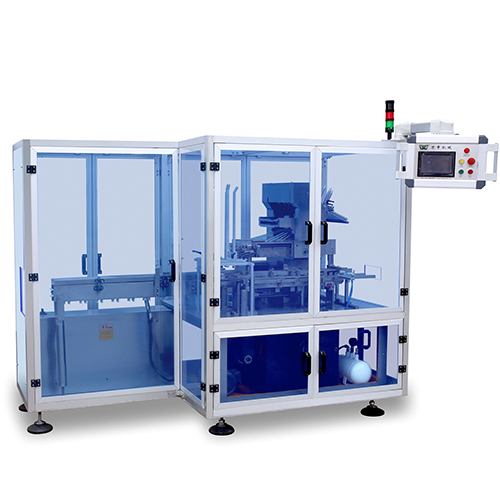

Automatic Toothpaste Tube Cartoning Machine

Automatic Toothpaste Tube Cartoning Machine

Performance Features

1. It is provided with automatic detection system, and the function of positioning, stopping and online sub-quality product elimination

2. It adopts human machine interface operating system, which show cartoning speed automatically, quantity, faulty causes and other performance parameters, also display operation and maintenance methods.

3. Multi box size can be used in one cartoning machine.

4. Three rows of batch numbers can be printed on medicine box or other kinds of box synchronously.

5. It can equip with hot melt glue machine.

6. It adopt synchronous servo system for synchronous feeding

7. It is provided with function of no sucking of user instructions and no sucking cartons in case of material shortage

Technical Parameters

Model HDZ-100G
Cartoning Speed 60-100cartons/minute
Carton Specification L50-120*W15-50*H15-50mm
User Instruction Specification 110-180mm*90-280mm
Voltage 380V/50HZ
Total Power 1.1KW
Equipment Dimension L1250*W1120*1550mm
Compressed Air Pressure 0.6Mpa
Compressed Air Consumption 30-90L/min

Reminder: if carton specification exceeds our standard machine range, our company can customize according to your size. the package product type, quantity and the packaging materials will determine cartoning speed

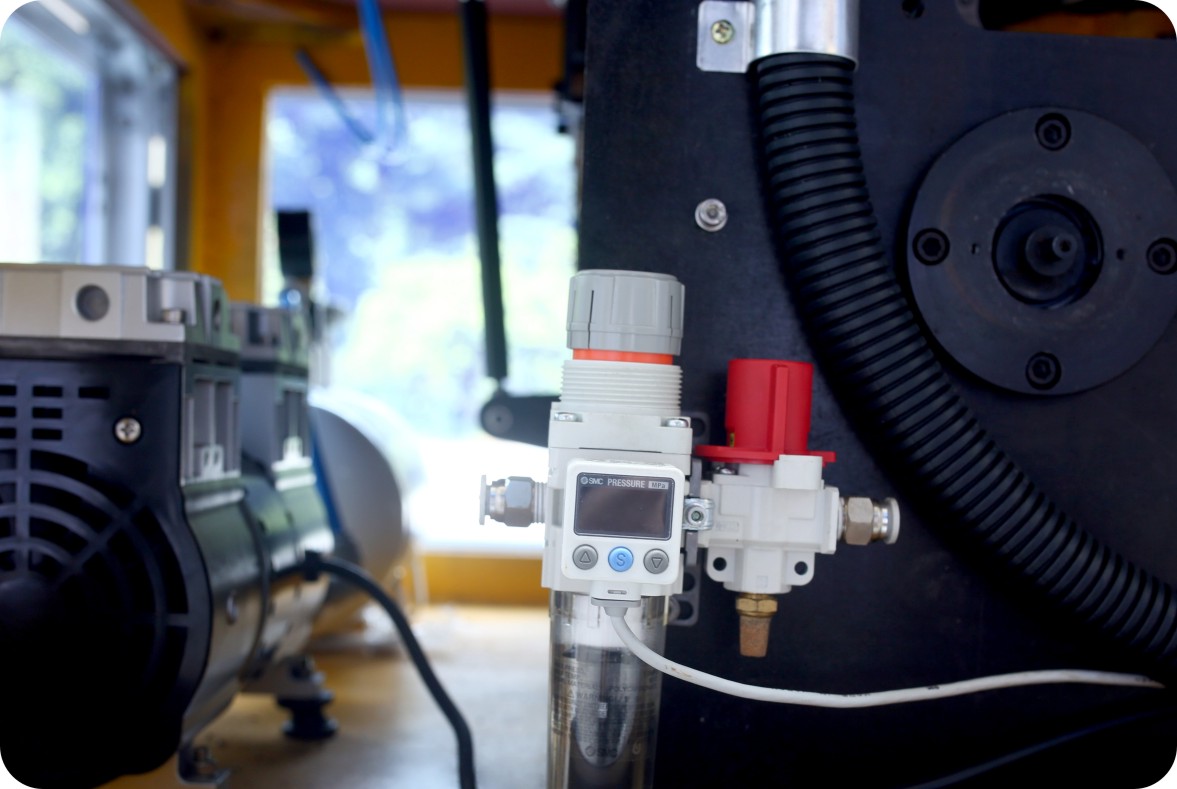

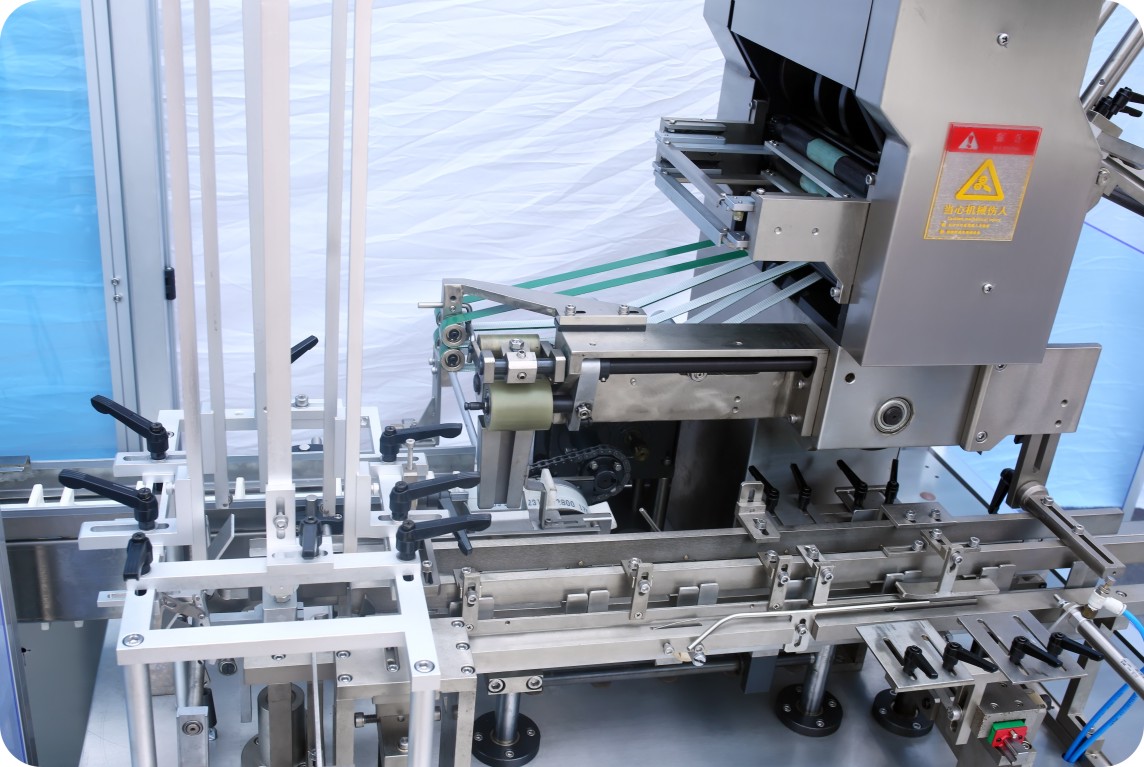

Machine Details
